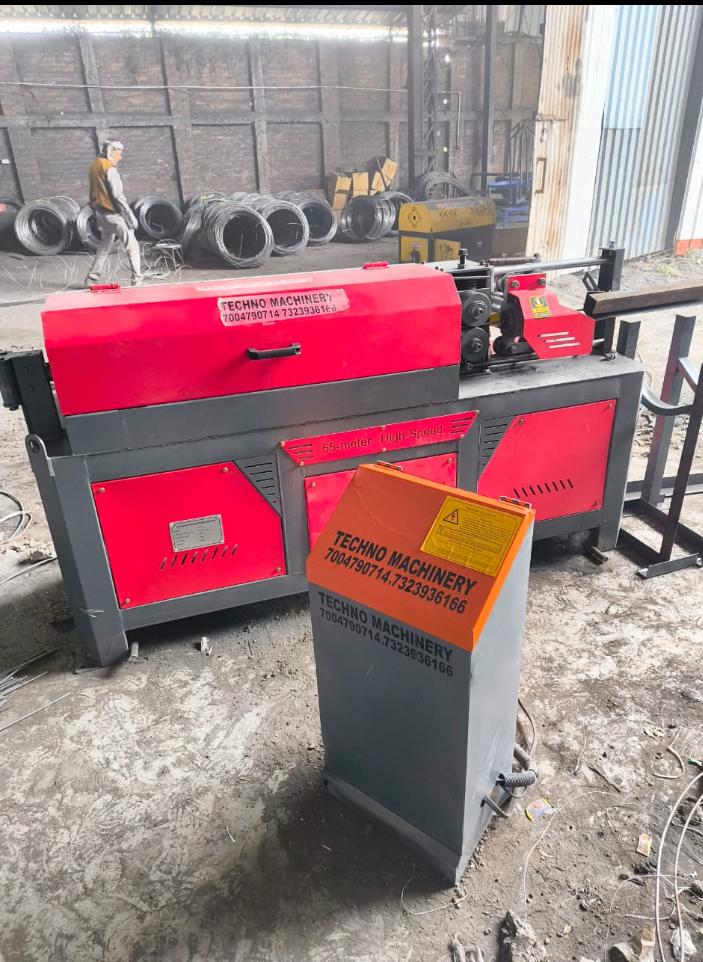

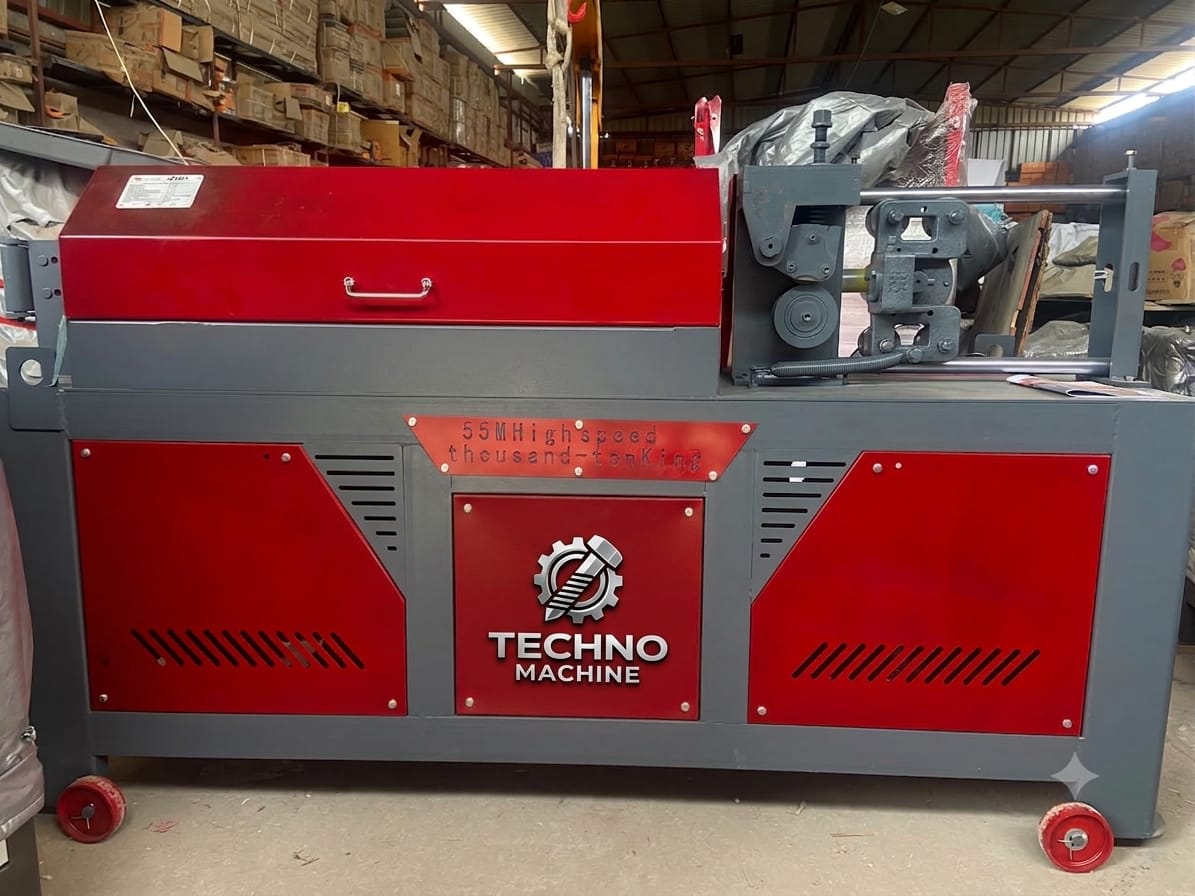

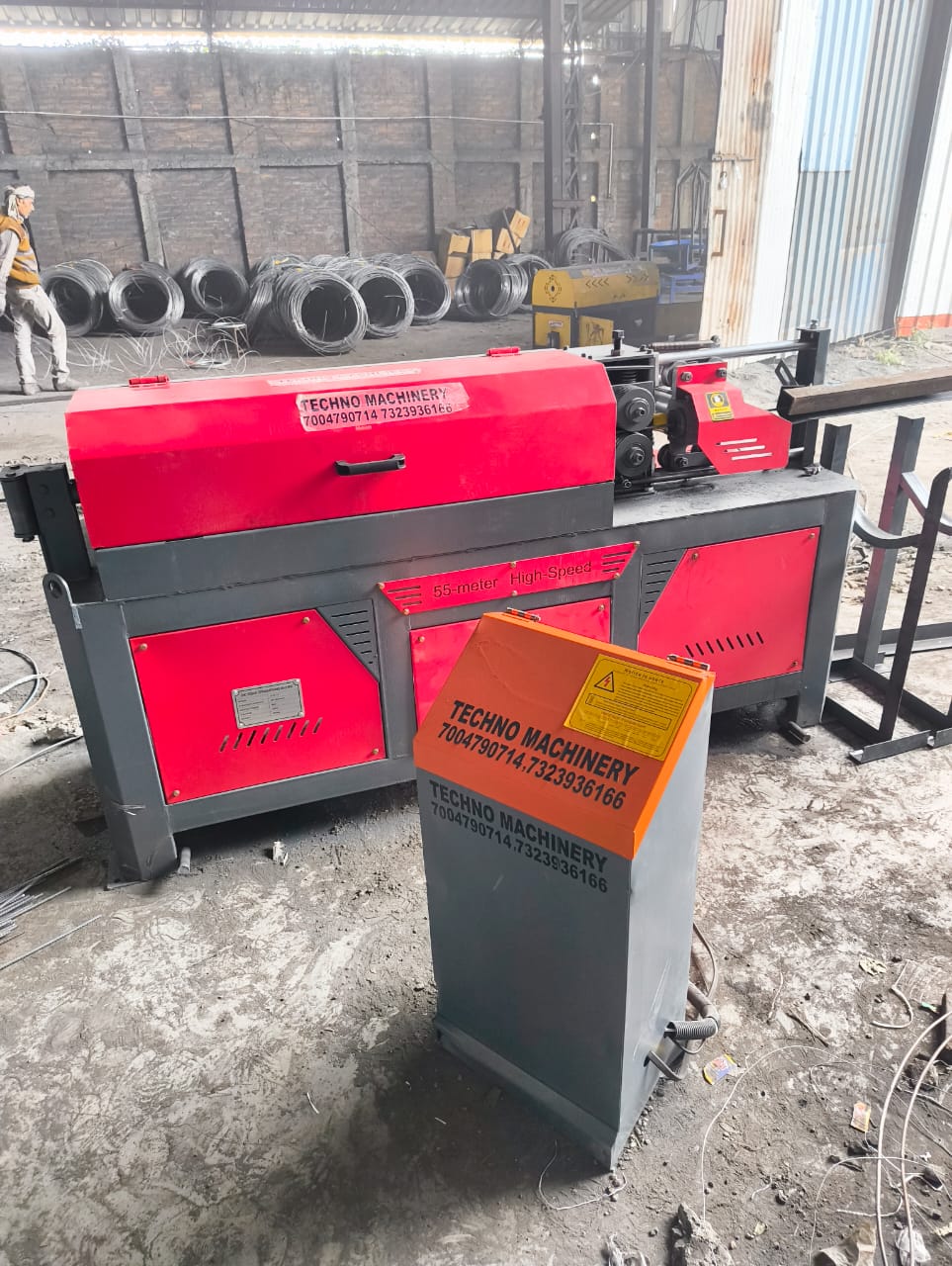

GTQ-55
High-Speed Rebar Straightening Machine 55m
High-speed rebar straightening machine processing up to 55m bars. Combines straightening and cutting in one pass. Perfect for large volume rebar processing on site or in workshop.
Key Features
- Ultra high-speed processing up to 55m
- Flying shear for continuous cutting
- Minimal material waste
- Suitable for 4–12 mm coiled rebar
Technical Specifications
| Parameter | Details |
|---|---|
| Max. Bar Length | 55 m |
| Straightening Capacity | 4 – 12 mm |
| Straightening Speed | 50 – 120 m/min |
| Cutting Method | Flying Shear |
| Motor Power | 15 kW |
| Voltage / Frequency | 415 V / 50 Hz / 3 Phase |
Applications
High Volume Rebar ProcessingInfrastructure ProjectsPrecast PlantsLarge Reinforcement Works
